以下是本产品的详细资料介绍：
本产品名称：fig.928不锈钢止回阀 fig.928不锈钢逆止阀 台湾进口不锈钢止回阀 jis10k
本产品台湾叫法：fig.928-不銹鋼橫式逆止閥
|
jis-10k(pn16、pn10) |
|
fig.928-不锈钢横式止回阀 | |
stainless steel swing check valve |
|
bolted cover,integral seat,swing type,flanged ends. |
|
|
|
|
零件 part |
材质 material |
| 阀体 body |
stainless steel (cf8) |
| 阀盖 cover |
stainless steel (cf8) |
| 阀盘 disc |
stainless steel (cf8) |
| 座环 seat ring |
stainless steel (cf8) |
| 堵头 plug |
stainless steel (304) |
| 销 pin |
stainless steel (304) | |
|

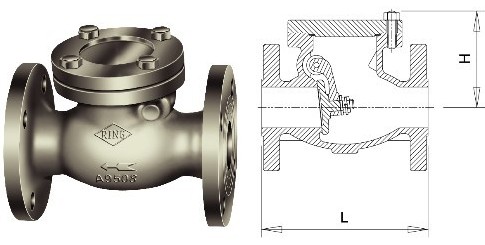

尺寸 |
1/2 |
3/4 |
1 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
l |
112 |
125 |
135 |
165 |
203 |
216 |
241 |
292 |
330 |
356 |
495 |
622 |
698 |
|
h |
70 |
70 |
80 |
105 |
123 |
125 |
145 |
165 |
190 |
210 |
242 |
295 |
376 |
| 注1： |
可供货 ansi 300lb全尺寸产品。 |
| 注2： |
阀座可加焊stellite(司太立合金)耐磨料。 | |
| |
