台湾原装sv-s69青铜安全阀
规格参数
产品名称：青铜安全阀
型号规格：sv-s69
公称直径：dn15-dn50mm
公称压力：1.6mpa
阀体材质：青铜
连接方式：螺纹
适用介质：蒸汽、水
驱动方式：手柄
台湾317阀门：
台湾317蝶阀、台湾317球阀、台湾317闸阀、台湾317安全阀、台湾317疏水阀、台湾317减压阀、台湾317截止阀、台湾317止回阀、台湾317过滤器、台湾317释放阀、台湾317水镜阀。
产品特点：

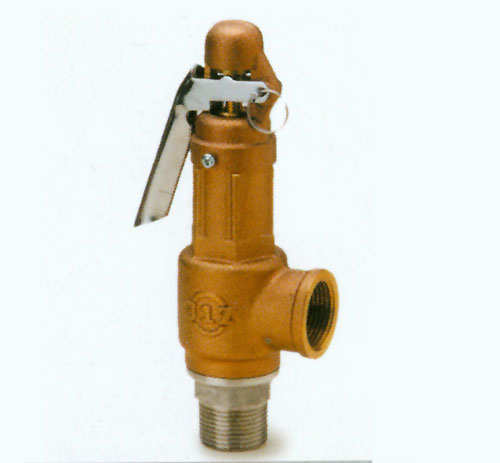

(sv-s69) bronze safety relief valve
|
model: sv-s67 / svp-s67 without lever
model: sv-s69 / svp-s69 with lever
the disc can be replaced with ptpe for good effect of anti-leakage. (model: svp-s67, svp-s69)
spring: 1/2”~1”: steel or sus304 1.1/4”~2”: steel.
when placing order, please indicate working pressure
working fluid : s67
|
non-corrosive gas, non-corrosive liquid, air, steam, water, oil.
|
working fluid : s69
|
non-corrosive gas, air, steam.
|
working temp:
|
-45℃～185℃
|
working pressure:
|
sv-s67 / sv-s69 :
0.3 ~ 10 kgf/cm2 11 ~ 20 kgf/cm2
svp-s67 / svp-s69 (ptfe)
3 ~ 10 kgf/cm2
|
thread end:
|
bspt (bs21), npt (ansi b2.1)
|
material:
|
no./ parts
|
w/o lever
|
sv-s67
|
svp-s67
|
with lever
|
sv-s69
|
svp-s69
|
|
type :
|
metal to metal
|
ptfe
|
1
|
valve seat
|
sus304
|
sus304
|
2
|
valve disc / seal
|
forge brass
|
brass ptfe
|
3
|
valve spindle
(stem)
|
brass
|
brass
|
4
|
valve body
|
bronze
|
bronze
|
5
|
spring shoe
|
bsbm
|
bsbm
|
6
|
adjusting screw
|
bsbm
|
bsbm
|
7
|
stop nut
|
bsbm
|
bsbm
|
8
|
cap
|
forge brass
|
forge brass
|
9
|
lever (type: s69)
|
steel
|
steel
|
10
|
spring
|
sus304 / steel
|
sus304 / steel
|
11
|
screw washer
|
bsbm
|
bsbm
|
12
|
hexagon nut
|
bsbm
|
bsbm
|
13
|
stop bolt
|
bsbm
|
bsbm
|
14
|
pin
|
bsbf
|
bsbf
|
|
适用范围：
台湾317阀门是专业於蒸气配锅炉配管零件及相关工业阀类之製造、销售及研发迄今已有40年经验。為强化服务品质，本公司已於1998通过iso 9001 system 品质系统认证，提昇自我服务水準及客户的信心。
