以下是本产品的详细资料介绍：
本产品名称：fig.409黄铜闸阀 台湾东光-fig.409闸阀 fig.409-鑄黃銅閘閥
本产品台湾叫法：fig.409-鑄黃銅閘閥
|
|
brass gate valve |
|
wedge disc,threaded ends,conform to cns 9805 b2740 |
|
|
|
|
零件 part |
材质 material |
| 阀体 body |
cast brass |
| 阀盖 bonnet |
cast brass |
| 阀杆 stem |
brass |
| 阀盘 disc |
cast brass |
| 迫紧螺帽 p/n |
brass |
| 迫紧 packing |
ptfe |
| 手轮 handwheel |
cast iron | |
|

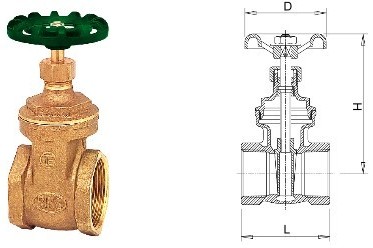

尺寸 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
|
l |
43 |
48 |
53 |
60 |
62.5 |
71 |
87 |
96 |
114.5 |
|
h |
76 |
86 |
100 |
109 |
125 |
148 |
184 |
209 |
258 |
|
d |
53 |
53 |
59 |
72 |
72 |
81 |
100 |
112 |
126 | |
|
最高使用压力 |
试验压力(水压) |
| 常温之水、油、空气 |
阀体 |
阀座 |
| 8.5kg f/cm2 |
17kg f/cm2 |
13kg f/cm2 | |
